Iyini i-Check Valve: Umhlahlandlela Ophelele Wohlobo Nejwayelekile.

Hlola Ukubuka Konke Kwe-Valve

I-valve yokuhlola iyi-valve ezenzakalelayo esebenzisa umfutho woketshezi kanye nesisindo sediski ukuvimbela ukugeleza okubuyela emuva. Eyaziwa nangokuthi i-valve engabuyi, enendlela eyodwa, i-reflux, noma i-isolation, umsebenzi wayo oyinhloko ukuqinisekisa ukugeleza okuqondisayo ukuvikela izinhlelo zamapayipi ekulimaleni kokugeleza emuva.

Indlela Ama-Check Valve Asebenza Ngayo

Ukugeleza phambili: Ukucindezela koketshezi kuphakamisa idiski, okuvumela ukuthi idlule.

Ukugeleza okuphambene: Idiski ivala ngokucindezela kwamandla adonsela phansi/uketshezi, ivimba imidiya.

Izingxenye Eziyinhloko Zama-Check Valve

Izingxenye ezibalulekile zifaka:

Umzimba weValve: Amapayipi axhumanisayo ekheyisini langaphandle

Idiski: Ingxenye yeselula evumela ukulawula ukugeleza

Isihlalo: Yakha indawo yokuvala enediski

Intwasahlobo: Iphoqa ukuvalwa kwediski (ngezinhlobo ezisizwa yintwasahlobo)

Hlola Uphawu Lwevalvu Kumdwebo We-PID

Ukuqonda Uphawu Lwe-Check Valve

1.Umbuthano: Imele umzimba we-valve.

2.Umcibisholo noma Umugqa Ovundlile: Kubonisa indlela yokugeleza. Lokhu kubalulekile ekufakweni, njengoba kuqinisekisa ukuthi ivalvu ibekwe kahle ngaphakathi kohlelo.

3.Izaziso ezengeziwe: Ngezinye izikhathi, izimpawu ezengeziwe noma amalebula angase ahambisane nophawu ukuze anikeze ulwazi olwengeziwe, njengosayizi wevalvu, izinto zokwakha, noma isilinganiso sengcindezi.

Hlola Amazinga Okuklama Amavalvu

Ukuthobela imithetho kuhlanganisa izindinganiso zikazwelonke, zezimboni, nezamazwe ngamazwe zezinto zokwakha, ezokwakha, zokusebenza, kanye nokufakwa:

Izindinganiso Zomhlaba Wonke

I-API 594: Imboza ama-valve okuhlola i-wafer/lug yamapayipi kawoyela/igesi

I-ASME B16.34: Imininingwane yomklamo wamavalvu acwebezelayo/ashiselwe

I-API 6DAmavalvu epayipi (amavalvu ebhola/okuhlola/esango) ezimboni zikaphethiloli

Izindinganiso Zikazwelonke ZaseShayina

GB/T12233-2006Amavalvu okuhlola ukuphakama kwensimbi (≤PN40)

GB/T13932-1992: Amavalvu okuhlola ukujikijela kwensimbi (DN50-DN1800, amanzi/umusi)

GB/T12235-2007Ama-valve okuhlola ensimbi ezinhlelo zephethiloli ezine-T/P ephezulu

Izindinganiso Zevalvu Ezikhethekile

CJ/T282-2008Amavalvu okuhlola ukuvala kancane kwebhabhathane (izindawo zokufaka iphampu)

GB/T21387-2008: Ama-valve okuhlola ukugeleza kwe-Axial (ukumelana nokugeleza okuphansi)

Izidingo Zokukhetha Nokuklama

UsayiziUhlobo lokujika lwe-≤350mm; uvemvane lwe-≥400mm

Ukucindezela okuphezulu(≥4.0MPa): Sebenzisa amavalvu amabili noma ivalvu + ukuvala okuphuthumayo

Ukuhlolwa: Ukuhlolwa kwengcindezi yegobolondo le-PN okungu-1.5x; Ukuhlolwa kwe-seal ye-PN oku-zero-leak okungu-1.1x

Izinzuzo Zokuhlola I-Valve

Izinzuzo Zokuklama Nokusebenza

Ezizisebenzelayo: Akudingeki amandla angaphandle (amandla adonsela phansi/intwasahlobo/uketshezi oluqhutshwa)

Impendulo esheshayo: Ukuvalwa kwemizuzwana engu-≤0.05 (ama-vacuum valve) kuvimbela ukungcoliswa kokubuyela emuva

Imiklamo ehlukahlukene:

• Uhlobo lokuphakamisa: Isivalo esingcono kakhulu semidiya ehlanzekile ene-P ephezulu
• Uhlobo lokujika: Ukumelana okuphansi kwamapayipi aqukethe izinhlayiya
• Amadiski amabili: Ancane kakhulu ezinhlelweni ezilinganiselwe isikhala

Ukusebenza Nokuphepha

• Kuvimba ukugeleza okuphambene kwezinto ezikhipha imisebe/izinto ezibhubhisayo (izitshalo zenuzi/zamakhemikhali)

• Kunciphisa umonakalo wesando samanzi ngezindlela zokuvala ngokushesha

• Igcina ubuqotho be-vacuum (10⁻⁶~10⁻⁸ Ukuvuza kwe-Pa·m³/s)

Ezomnotho Nokuhambisana

• Okonga amandla: Ukusetshenziswa kwamandla okuqhubekayo akukho

• Ububanzi bezinto zokwakha: Insimbi engagqwali/i-ceramic/i-fluororubber (-200°C~800°C)

• Ukusetshenziswa kwezimboni eziningi: Izinhlelo zamanzi/uwoyela/igesi/i-HVAC/amakhemikhali

Izicelo Ezijwayelekile

Kuvimbela ukubuyela emuva kwezimo ezibucayi:

• Izinhlelo Zoketshezi: Izindawo zokupompa amanzi, ukuphakelwa kwamanzi aphezulu, imigqa yokuphakelwa kwamabhoyila

• Amakhemikhali/Aphezulu: Ukudluliselwa kwemidiya eyonakalisayo, izinhlelo zomusi ezingama-400°C+

• Amacala Akhethekile: Amaphampu omlilo (ukuvimbela isando samanzi), umoya ocindezelwe, amapayipi kawoyela

Icebiso Lokukhetha: Cabanga nge-media viscosity, ingcindezi, amaphethini okugeleza. Faka kahle (isb., izinhlobo zokuphakamisa ziqonde phezulu).

Ukuhlukaniswa Kwevalvu Yokuhlola

Ngesakhiwo

• Amavalvu Okuhlola Ukuphakamisa:

Ukunyakaza kwediski eqondile (okusizwa yintwasahlobo/amandla adonsela phansi)

Kungcono kakhulu kwimidiya ehlanzekile ye-DN≤200mm (izinhlelo zamanzi)

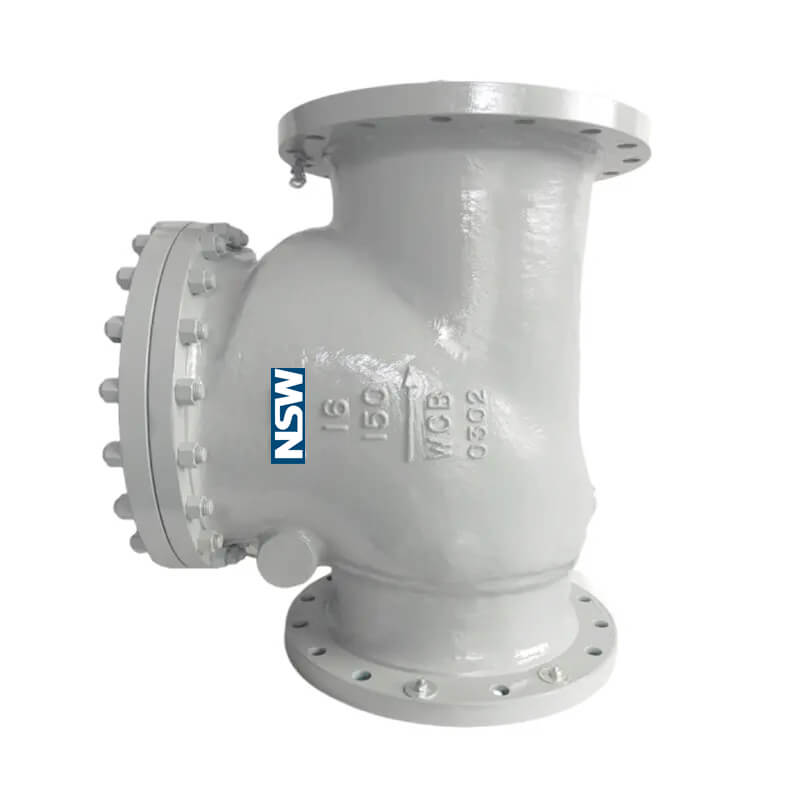

•Amavalvu Okuhlola Ukujika:

Idiski ijikeleza kuphini lokubopha

Ukumelana okuphansi kwamapayipi amakhulu

Izinhlobo ezincane: Ezine-flanged, i-wafer, i-single-disc

•Amavalvu Okuhlola Amapuleti Amabili:

Idizayini ye-wafer encane

Ilungele izinhlelo zokuvikela umlilo

• Amavalvu Okuhlola Ukugeleza Kwe-Axial:

Ukushelela kwediski okusemgqeni

Kunciphisa isando samanzi (amapayipi egesi)

• Izinhlobo Ezikhethekile

I-Diaphragm: Ayimelani nokugqwala kwemidiya yamakhemikhali

Ibhola: Izinhlelo ze-High-P ezincane ezithwala amathambo

I-Nozzle: Ukulawula ukugeleza kwezinhlangothi ezimbili

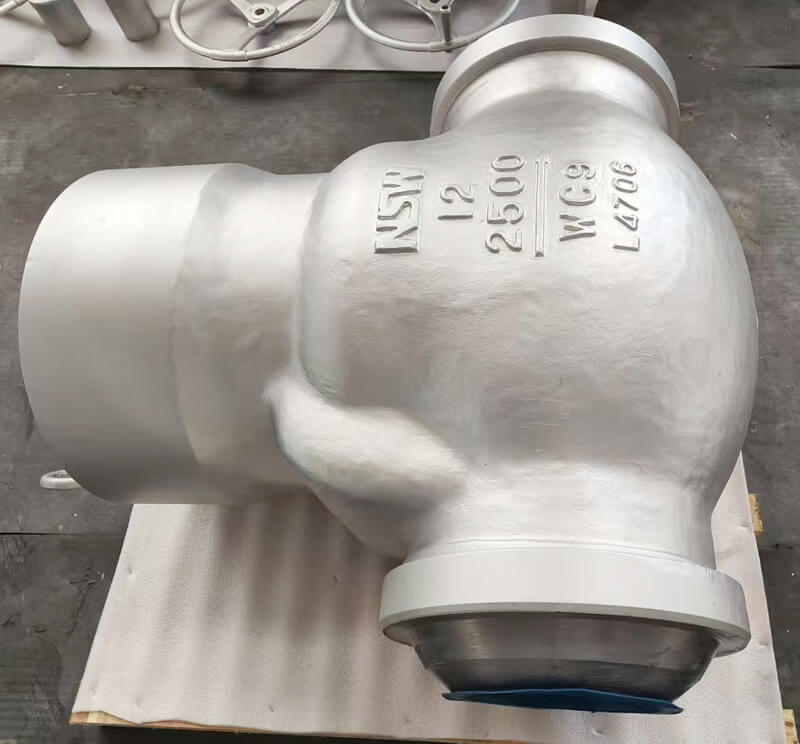

I-Pressure Sealed Bonnet Check Valve:Sebenza Ngengcindezi Ephakeme (Isigaba 900, Isigaba 1500, Isigaba 2500), Izinga Lokushisa Eliphezulu.

•Ukuhlukaniswa Kwesibili

Uxhumano: I-Flanged, i-threaded, i-welded, i-wafer

Ingcindezi: I-P ephansi (≤1.6MPa), i-P ephezulu (≥100MPa)

Umsebenzi: Ukuthula, ukuvala kancane, ukujikeleza kwegazi okuzenzakalelayo
