Ayini Ama-High Performance Butterfly Valve (ama-HPBV)

1. Ayini Ama-valve e-Butterfly Asebenza Kakhulu

I-valve ye-butterfly esebenza kahle kakhulu ibhekisela kuhlobo olusha lomkhiqizo we-valve ye-butterfly oluthuthukisa ukuvalwa nokuguguleka kwama-valve e-butterfly, lwandisa ukumelana nokushisa okuphezulu kanye nokumelana nokugqwala, futhi luthuthukisa impilo yesevisi kanye nokuthembeka ngokusekelwe kuma-valve e-butterfly ajwayelekile (ama-valve e-butterfly aqinile kanye nama-valve e-butterfly angavamile kathathu) ngokuthuthukisa isakhiwo nezinto zokwakha. Uma kuqhathaniswa nama-valve e-butterfly avamile, ama-valve e-butterfly asebenza kahle kakhulu aphila isikhathi eside, i-torque elula, ububanzi bokucindezela kokusetshenziswa okubanzi, kanye nokusebenza okungcono kokuvala.

Amavalvu e-butterfly asebenza kahle kakhulu (ama-HPBV) amelela ukuvela okuthuthukile komklamo wevalvu ye-butterfly ejwayelekile. Aklanyelwe ukuvala, ukuqina, kanye nokulawula okuphezulu ekusetshenzisweni okubalulekile, afaka ama-geometri e-offset disc (aphindwe kabili noma kathathu) futhi asebenzisa izivalo ezihlala zensimbi kuya kwensimbi noma eziqinile. Ngokungafani nezinye zazo ezihlanganisiwe,ama-valve ebhabhathane asebenza kahle kakhulubavelele ekusingatheni ukucindezeleka okuphezulu, amazinga okushisa aphezulu, izinto ezigqwalisayo, futhi banikeze ukuvala okungenamagwebu, okwenza kube yinto ebalulekile ezinqubweni zezimboni zanamuhla.

1.1 Izingxenye Eziyinhloko Ze-Butterfly Valve: Ukuxhumana Komzimba, Idiski, Isiqu, Isihlalo, kanye Ne-Actuator

Izingxenye eziyinhloko zevalvu yebhabhathane ziwela ezigabeni ezinhlanu ezinkulu: umzimba wevalvu, idiski yebhabhathane, isiqu sevalvu, isihlalo sokuvala, kanye nezingxenye zokuxhuma ze-actuator.

•Umzimba weValve: Umzimba wevalvu usebenza njengegobolondo eliyinhloko langaphandle, uthwala ingcindezi yepayipi kanye nemithwalo ephakathi nendawo ngenkathi usebenza njengesisekelo sokufaka sazo zonke ezinye izingxenye. Itholakala ngezilungiselelo zohlobo lwe-wafer kanye ne-lug, ngokuvamile ezenziwe ngensimbi ephonswe, insimbi yekhabhoni, noma insimbi engagqwali.

•Idiski Yevalvu: Idiski yebhabhathane iyisici esibalulekile sokuvula, ukuvala, kanye nokugoqa. Ukwakheka kwayo okufana nediski, okutholakala ezakhiweni eziqondile noma ezingavamile, kunquma ngqo ukusebenza kokuvala kanye nokumelana nokuguguleka. Kumelwe imelane nokugqwala nokuguguleka.

•Isiqu seValvu: Isiqu sevalvu sidlulisa amandla, sixhumanisa i-actuator nediski ukuze sikwazi ukunyakaza okujikelezayo. Ngokuvamile senziwe ngensimbi engagqwali, enemiklamo eqinisiwe neyinkulu kakhulu yezinhlelo zokusebenza ezinobukhulu obukhulu, ezinomfutho ophezulu ukuvimbela ukugoba noma ukuguquka.

•Isihlalo Sevalvu:Isihlalo sokuvala siyisihluthulelo sokuvala okuqinile. Siza ngezinto zerabha ezithambile noma zensimbi eziqinile, ezihambisana kahle nediski ukuze zingaphumi nhlobo.

•I-Actuator: Izingxenye zokuxhuma ze-actuator zifaka phakathi izibambo, amagiya ezikelemu, kanye nama-actuator kagesi/omoya. Anikeza i-torque edingekayo yokuvula nokuvala, evumela ukusebenza ngesandla kanye nokulawula okukude okuzenzakalelayo. Zonke izingxenye zisebenza ndawonye ukuqinisekisa ukusebenza okuzinzile, ukuvala okuthembekile, kanye nokulawulwa okunembile kwe-valve ye-butterfly.

1.2 Ukuhlaziywa Kwesimiso Sokwakheka Kwesakhiwo se-High-Performance Butterfly Valve

Ivalvu yebhabhathane esebenza kahle kakhulu iyivalvu yebhabhathane eklanywe ngokunemba, efanelekela kahle ukulawula noma ukulawula ukugeleza kanye nokucindezela ezisetshenziswayo ezifana namanzi ompompi, amanzi ezimboni, amanzi angcolile, umoya, i-HVAC, igesi yedolobha, kanye ne-LPG. Uma ivaliwe, ivalvu ayitholi ukuvuza nhlobo.

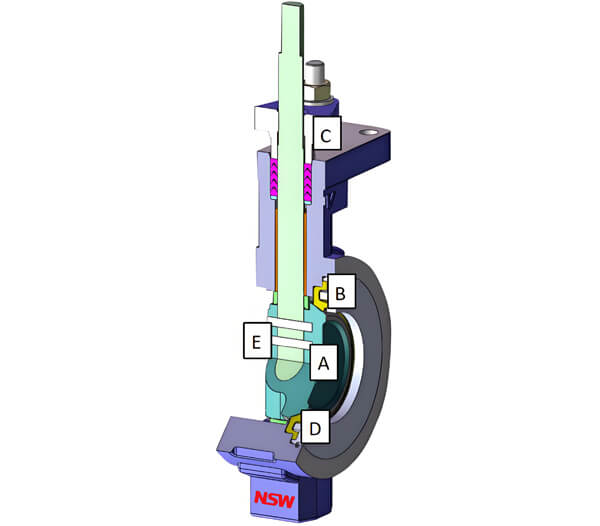

Isakhiwo sesihlalo se-valve sinomklamo wokuvala ijika le-COS onelungelo lobunikazi, okunciphisa ukungqubuzana phakathi kwediski nesihlalo, wehlise i-torque ye-actuator, futhi wandise impilo yesihlalo. Inqubo yaso yokuvala ifana neye-valve enezinhlangothi ezimbili. Ubuso bokuvala idiski buyindilinga, buqinisekisa ukuthintana okubushelelezi ngesikhathi sokuvala. Ukungqubuzana okuncishisiwe, ikakhulukazi esivalweni somgodi, kwandisa kakhulu impilo yesevisi yesihlalo. Indandatho yokugcina insimbi ngaphakathi kwendandatho yesihlalo ivala ngokuzenzakalelayo noma yiliphi igebe phakathi kwesiqu nendandatho yesihlalo lapho isiqu sibhekene namandla angalingani, okususa amathuba okuvuza kwe-axial.

•Ijika le-COS: Umklamo wokuvala ijika le-COS uqinisekisa ukuthi akukho ukwanda kwe-torque ngaphambi kokuba kuvalwe. Ngesikhathi sokuvala, idiski ixhumana nendandatho yesihlalo ngesikhathi esisodwa kulo lonke umjikelezo ongu-360°, kunciphisa ukungqubuzana, kwehlisa i-torque, kwandise impilo yesihlalo, futhi kugcina kungekho ukuvuza ngesikhathi sokusebenza kwesikhathi eside. Ukungqubuzana okuncishisiwe kanye ne-torque kuvumela ukusetshenziswa kwama-actuator anamandla aphansi, kunciphisa izindleko zomsebenzisi.

•Idiski Enomshini Ojikelezayo: Idiski iklanywe ngomshini ibe yindilinga ephelele, yonke ingxenye yendawo yokuvala yakha ingxenye yendilinga. Kokubili idiski kanye nendandatho yesihlalo kucutshungulwa kube yindilinga efanayo, okuholela ekuvulekeni okuncane futhi kungabikho ukungqubuzana. Idiski ijikeleza kahle, ngisho nasezindaweni zokuvala eziqondile phezulu nangaphansi. Naphezu kokuthintana, izindawo zokuvala zibushelelezi kakhulu, kunciphisa i-torque futhi kuthuthukisa ukusebenza kokuvala.

•I-valve ye-Butterfly ene-PTFE Esebenza Kakhulu: Le valve inomgodi womzimba ohlanganiswe ne-PTFE futhi isetshenziswa kabanzi ekudleni, ekhemisini, kuma-elekthronikhi, nakwezinye izinhlelo zokusebenza zenhlanzeko zokulawula noma ukulawula ukugeleza nokucindezela koketshezi oluhlukahlukene, kanye nasezisetshenzisweni zemboni yamakhemikhali ezibandakanya ama-asidi aqinile, ama-alkali aqinile, namagesi agqwalisayo kakhulu. Inikeza ukuqina okuphezulu, ukusebenza kahle kokuvala, kanye nokumelana nokugqwala okuvelele, okufeza ukuvuza okungekho lapho kuvaliwe.

•Umklamo Wophawu Lohlobo lwe-I: Umklamo wendandatho yokuvala ugcina irabha neTeflon zizimele kodwa zihambisana, okuthuthukisa ukusebenza kokuvala ukuvala. Ukusetshenziswa kwerabha kunezela ukunwebeka kwesivalo ngenkathi kunciphisa inani lerabha elidingekayo, kususa ingozi yokuminyana kwediski endaweni evaliwe ngenxa yokwanda kwerabha ngenxa yokwenyuka kwezinga lokushisa.

Ukusebenza Okuthuthukisiwe Kokuvala Komklamo Omusha We-Butterfly Valve Osebenza Kakhulu:

a. Ulwelwesi lwe-PFA olunobukhulu obungu-3 mm noma ngaphezulu luvimbela ukungena kwamagesi ahlukahlukene futhi lunikeza ukumelana okuqinile kokugqwala.

b. Izipilingi zengezwa kokubili emabhokisini okupakisha aphezulu naphansi ukuze kunqotshwe imiphumela yokushintshashintsha kwezinga lokushisa ekuvaleni.

2. Ama-valve e-Butterfly Asebenza Kakhulu Uma kuqhathaniswa nama-valve e-Butterfly Ajwayelekile: Umehluko Obalulekile

Amavalvu ebhabhathane ajwayelekile anemikhawulo. Nansi indlelaAmavalvu e-Butterfly Asebenza Kakhuluhlukana:

3. Izinzuzo Eziyinhloko Zama-valve E-Butterfly Asebenza Kakhulu

Ukukhethaama-valve ebhabhathane asebenza kahle kakhuluinikeza izinzuzo ezibalulekile zokusebenza:

3.1. Ukuvala Okuqinile:Akufezi ukuvuza okugcwele, okubalulekile ekuphepheni, ekulawuleni ukukhishwa kwegesi, kanye nobuqotho benqubo.

3.2. Amandla Okucindezela Okuphezulu Nokushisa:Isingatha izimo ezidinga kakhulu ngaphezu kwama-valve ajwayelekile.

3.3. Ukuncipha Kokugqagqana Nokuguguleka:Umklamo ongavamile unciphisa ukungqubuzana ngesikhathi sokusebenza, wehlisa i-torque yokusebenza futhi wandise impilo yesihlalo/idiski.

3.4. Ukuvalwa Okuqondiswa Kabili:Ivala ngempumelelo ukugeleza okuvela kunoma iyiphi indlela.

3.5. Impilo Ende Yenkonzo:Izihlalo zensimbi eziqinile nezinto ezisezingeni eliphezulu ziqinisekisa ukuqina kwezinsizakalo zokukhuhla noma zokugqwala.

3.6. Izindleko Eziphansi Zomjikelezo Wokuphila:Ukunakekelwa okuncishisiwe, izikhawu ezinde zokushintsha, kanye nokusebenza okuthembekile kunciphisa ukutshalwa kwezimali kokuqala okuphezulu.

3.7. Amandla Okulawula Ukucindezela:Inikeza izici zokulawula ukugeleza okungcono uma kuqhathaniswa nama-valve e-butterfly ajwayelekile, ikakhulukazi imiklamo ye-triple offset.

4. Izinhlobo zama-valve e-butterfly asebenza kahle kakhulu

Amavalvu ebhabhathane asebenza kahle kakhuluzihlukaniswa ngokuyinhloko ngomklamo wazo we-offset yediski:

4.1.Amavalvu e-Double Offset Butterfly(I-Double Eccentric):

Isiqu sibekwe ngemuva komugqa ophakathi wediski (i-offset yokuqala) kanye nomugqa ophakathi wepayipi (i-offset yesibili). Lokhu kudala isenzo sekhamera, kuphakamisa uphawu lwediski kude ngokuphelele nesihlalo ngesikhathi sokuqala kwe-10° yokuvula, kunciphisa ukuguguleka. Kulungele izihlalo eziqinile noma zensimbi ezisetshenziswa ngokucindezela okuphakathi kuya kokuphezulu.

4.2. Amavalvu e-Triple Offset Butterfly (TOV / Triple Eccentric):

Ihlanganisa ama-offset amabili omklamo we-double offset kanye ne-offset yesithathu: i-geometry eyindilinga yendawo yokuhlala. Lokhu kuqinisekisa ukuthintana okumsulwa kwensimbi nensimbi, kuqeda ukungqubuzana kuyo yonke imisebenzi.Amavalvu e-Triple Offset Butterflybaphumelele kakhulu ezinsizeni ezinzima kakhulu - amazinga okushisa aphezulu, ukucindezela okuphezulu, izinto ezilimazayo, kanye nalapho kudingeka khona isitifiketi esiphephile emlilweni (API 607/API 641). Bayizona ezivelele kakhuluama-valve ebhabhathane asebenza kahle kakhulu.

5. Izinto Zokusebenza, Osayizi, kanye Nezilinganiso Zokucindezela

Amavalvu ebhabhathane asebenza kahle kakhulunikeza ukwenza ngokwezifiso okubanzi:

5.1. Izinto Zokusebenza Zamavalvu:

• Umzimba/Idiski: Insimbi Yekhabhoni (i-WCB, i-LCC), Insimbi Engagqwali (304, 316, 316L), i-Duplex/Super Duplex (2205, 2507), i-Alloy 20, i-Hastelloy, i-Titanium. Izimbozo (i-Xylan, i-PFA) zokumelana nokugqwala.

•Isihlalo: Insimbi Engagqwali, i-Inconel, i-Stellite (insimbi); i-PTFE, i-RPTFE, i-Graphite, i-PEEK (ehlanganisiwe/eqinile). Imiklamo ephephile emlilweni (i-API 607/641) ivamile.

•Isiqu: Insimbi Engagqwali (17-4PH, 316), Insimbi Ephindwe Kabili.

5.2. Usayizi wamavalvu:

Ngokuvamile isukela kumasentimitha angu-2 (DN50) kuya kumasentimitha angu-60 (DN1500) noma ngaphezulu kwezinhlelo zokusebenza ezikhethekile.

5.3. Izilinganiso Zokucindezela:

•Ngokuvamile kuhambisana ne-ASME Class (150, 300, 600) noma izilinganiso ze-PN (PN16, PN25, PN40, PN63, PN100).

•Amavalvu e-butterfly aphindwe kathathu angafinyelela ku-Class 600, 900, 1500, noma ngaphezulu.

6. Ukusetshenziswa kwama-High Performance Butterfly Valve

Ukuqina nokuvalwa okuqinile kweama-valve ebhabhathane asebenza kahle kakhuluzenze zifaneleke ezimbonini ezahlukahlukene ezidinga usizo:

→Uwoyela negesi (Umfula Ophezulu, Umfula Ophakathi, Umfula Ophansi – amapayipi, izindawo zokuhluza, amapulatifomu)

→Ukucubungula kwe-Petrochemical kanye ne-Chemical

→Ukukhiqizwa Kwamandla (Izinto Eziyinsalela, Inyukliya, I-Biomass – umusi, amanzi okuhambisa, ukupholisa)

→Izinsizakalo ze-LNG kanye ne-Cryogenic (Imiklamo ekhethekile)

→I-Pulp nePhepha

→Ukwakha Imikhumbi Yasolwandle Nokwakha Imikhumbi

→Ukwelashwa Kwamanzi Nokungcola (Izingxenye ezinengcindezi ephezulu, udaka)

→I-HVAC (Izinhlelo zomusi ezicindezela kakhulu)

7. Abakhiqizi Abahamba Phambili Be-Butterfly Valve Abasebenza Kakhulu

Ukukhetha umuntu othembekileUmkhiqizi wamavalvu e-Butterfly asebenza kahle kakhulukubalulekile ekuthembekeni nasekusekelweni. Okubalulekile emhlabeni jikelele kanyeAma-valve ebhabhathane asebenza kahle kakhulu aseShayinaabakhiqizi bafaka:

* Abaholi Bomhlaba Wonke: I-Flowserve (Argus, Durco), i-Emerson (Keystone), i-Crane (Xomox), i-Bray, i-NSW Valve, i-Velan (Cortec), i-IMI Critical Engineering.

* Abakhiqizi Abahamba Phambili Be-China High Performance Butterfly Valve: I-Neway Valve (Suzhou), i-NSW Valve, i-Yuanda Valve, i-KMC Controls, i-VAT Vakuumventile AG (imisebenzi yase-China). AbaningiAma-valve ebhabhathane asebenza kahle kakhulu aseShayinaabakhiqizi banikeza ikhwalithi yokuncintisana kanye namanani, ngokuvamile bagxile kuamavalvu ebhabhathane aphindwe kabilifuthi kuya ngokuya kuba yinkimbinkimbiamavalvu ebhabhathane aphindwe kathathu.

8. Isiphetho

Amavalvu e-Butterfly Asebenza Kakhulu, ikakhulukaziamavalvu ebhabhathane aphindwe kabilifuthiamavalvu ebhabhathane aphindwe kathathu, ziyizixazululo eziklanywe kahle zokulawula uketshezi olubalulekile lapho ama-valve ajwayelekile ehluleka khona. Ukuvalwa kwawo okuphezulu, ukubekezelela ukucindezela/ukushisa okuphezulu, ukuhlala isikhathi eside, kanye nokuguquguquka kuzenza zibe ezibalulekile kuzo zonke izimboni zikawoyela negesi, amandla, amakhemikhali, kanye nezinye izimboni ezisindayo. Lapho uthola izimpahla, cabanga ngemikhiqizo yomhlaba wonke esunguliwe kanye namakhono akhulayo e-Amavalvu e-Butterfly Asebenza Kakhulu e-Chinaabakhiqizi ukuthola ibhalansi efanele yokusebenza, ukuthembeka, kanye nenani elifanele izidingo zakho ezithile zohlelo lokusebenza.
